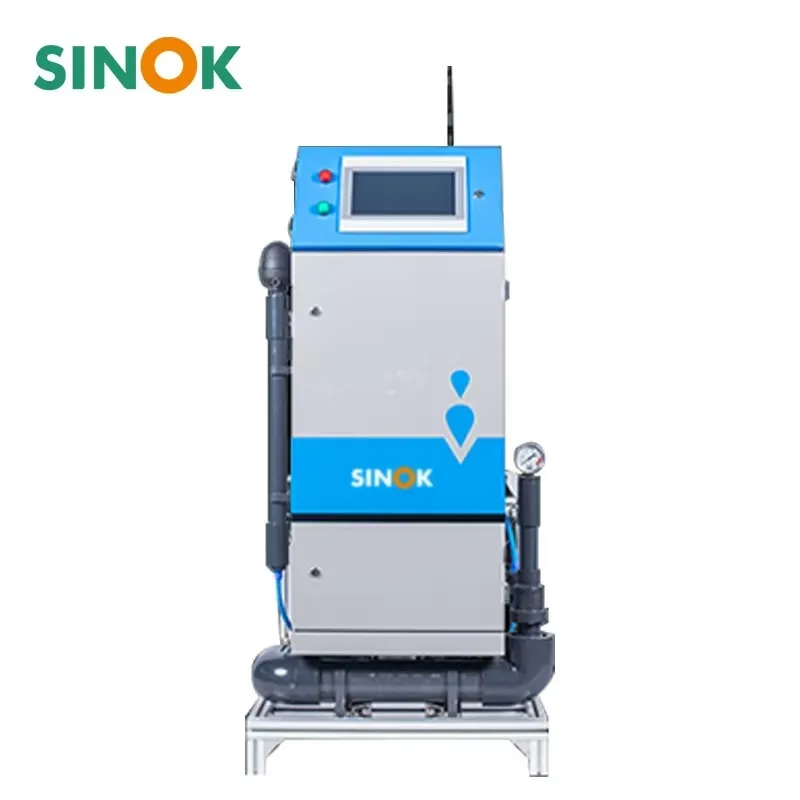

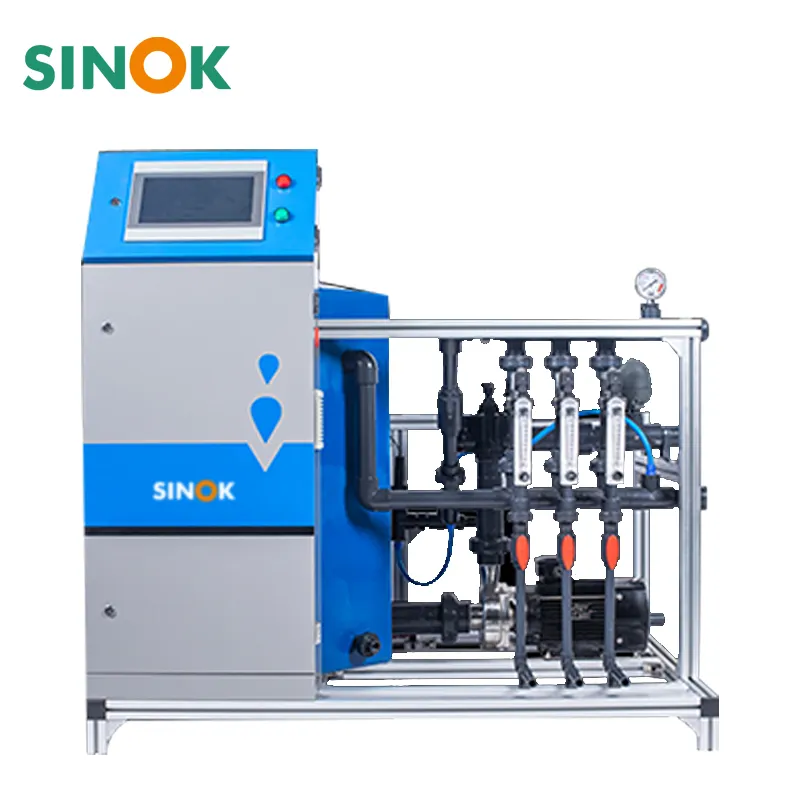

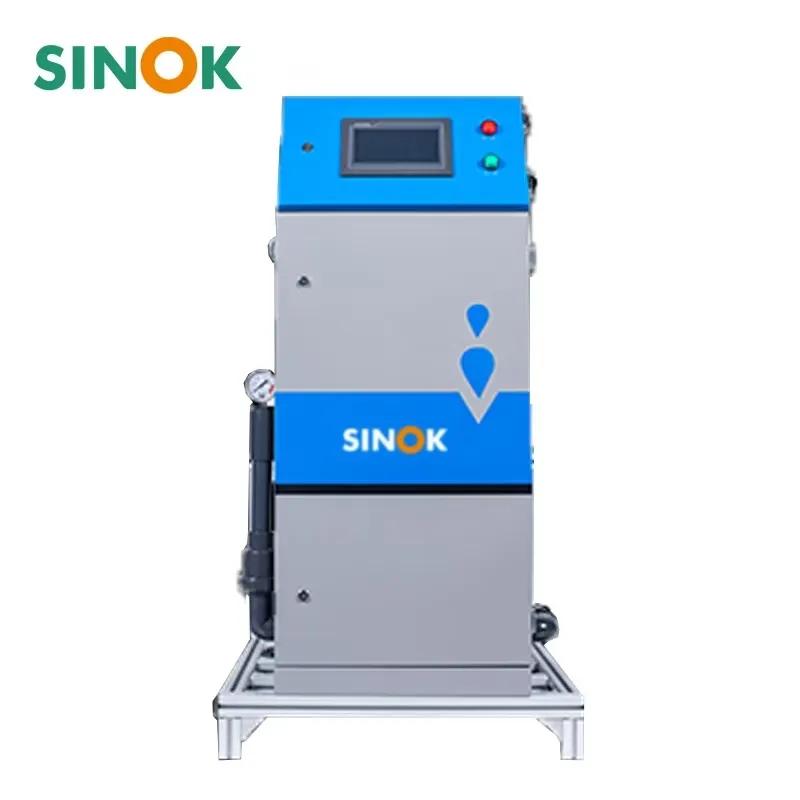

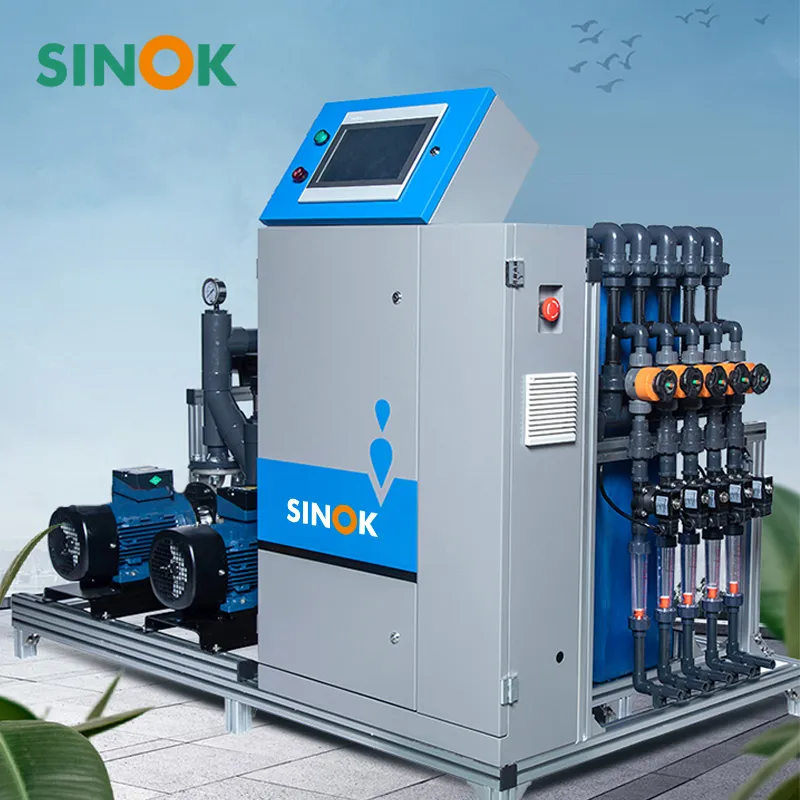

Water Fertilizer&Irrigation System
Introduction:
1. Installation Method: Online installation
2. Power Supply: 380V AC 50HZ/Customized

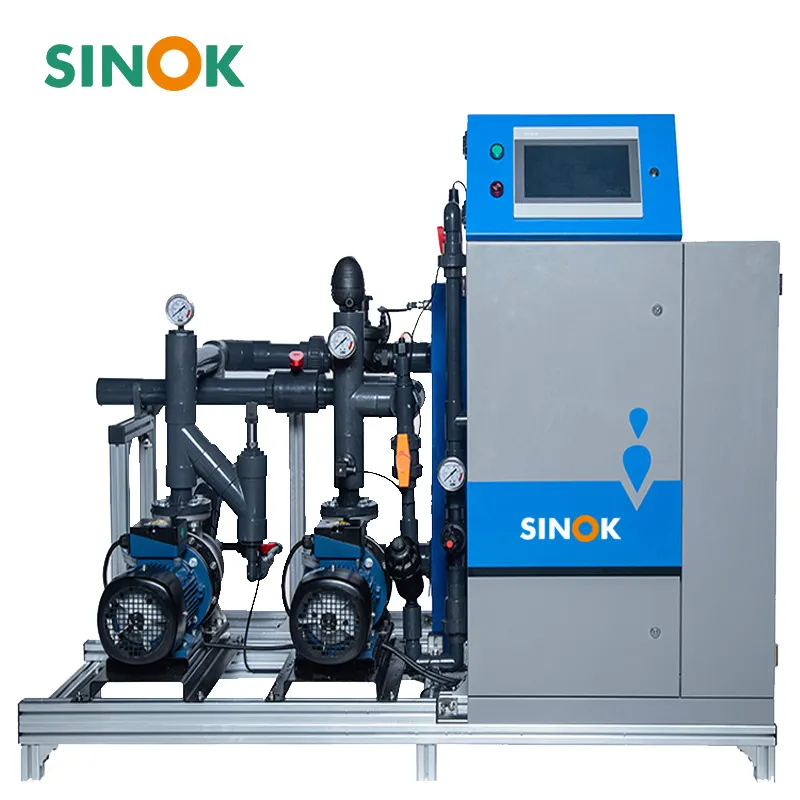

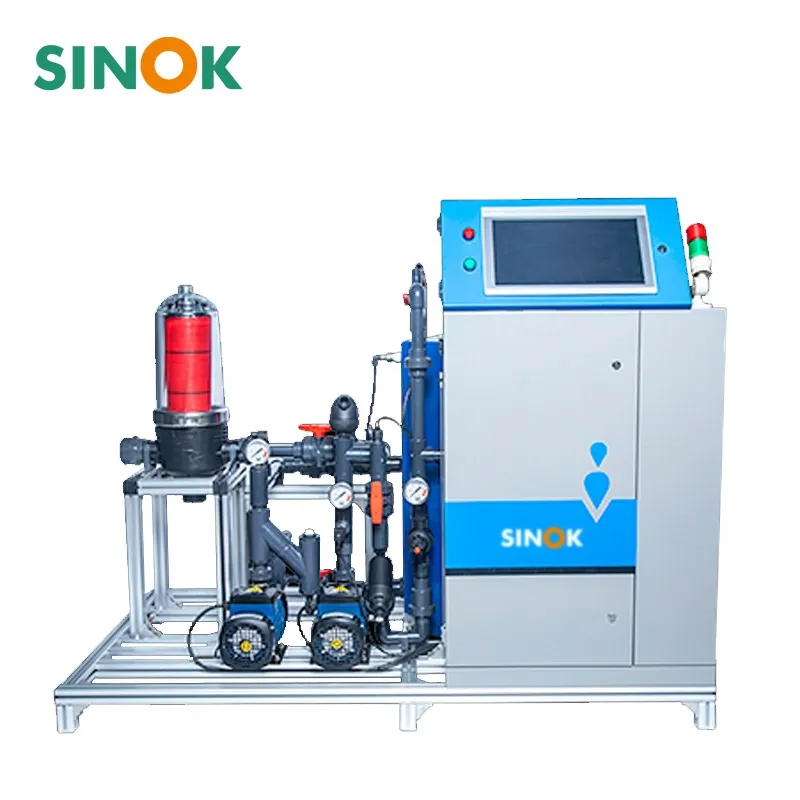

3. Water Pump Parameters: Water supply pump: 32 m³/h, 20 m, 3 kW; System pump: 32 m³/h, 33 m, 5.5 kW water supply pump is equipped with ABB 3 kW frequency converter.
4. Inlet & Outlet Size: DN80
5. Fertilizer Injection Channel: 5 channels (4 for fertilizers, 1 for acid). The fertilizer suction valves are American-brand solenoid valves with corrosion resistance and high response sensitivity. Each fertilizer suction channel is fitted with a micro-regulating valve for fine adjustment of fertilizer suction volume.
6. Fertilizer Injection Rate: 600 L/h per channel, with adjustable fertilizer suction flow.
1. Installation Method: Online installation
2. Power Supply: 380V AC 50HZ/Customized
3. Water Pump Parameters: Water supply pump: 32 m³/h, 20 m, 3 kW; System pump: 32 m³/h, 33 m, 5.5 kW water supply pump is equipped with ABB 3 kW frequency converter.
4. Inlet & Outlet Size: DN80
5. Fertilizer Injection Channel: 5 channels (4 for fertilizers, 1 for acid). The fertilizer suction valves are American-brand solenoid valves with corrosion resistance and high response sensitivity. Each fertilizer suction channel is fitted with a micro-regulating valve for fine adjustment of fertilizer suction volume.
6. Fertilizer Injection Rate: 600 L/h per channel, with adjustable fertilizer suction flow.
7. Fertilizer Blending Method: Automatic adjustment according to the set values of EC and pH. The channel ratio is adjustable, and different fertilizer suction ratios can be set for each channel.
8. Fertilizer Mixing Method: Barrel-type fertilizer blending, equipped with a cascaded sprinkler tray for uniform and rapid fertilizer mixing.
9. EC & pH Sensors: The EC sensor is imported from Germany, adopting high-precision inductive non-contact measurement to avoid electrode corrosion deviation and the influence of attached contaminants, featuring calibration-free and maintenance-free operation. The pH electrode is imported from JUMO, designed with isolated power supply for high data stability (measurement accuracy: ±0.02pH) and longer service life. Dual EC and pH detection points are configured.
Fertilizer Blending Accuracy: EC ±0.03 ms/cm, Stabilization Time: 30s under standard working conditions.
Product Parameters:
Model: XLH-YL2/Models Available
Voltage: 380V/Customized
Power: 2.2KW + 4KW
Liquid flow detection: EC sensor, PH sensor
Number of channels: Five channels
Fertilizer intake rate: 15m³/h (variable frequency constant pressure)
Valve control quantity: 16 (expandable)
Touch screen: 10 inches
Control method: Machine / Mobile APP
 |
 |
 |
Product Advantage:
Water saving 60%
Fertilizer saving 50%
Increase yield 30%
Labor-saving and eco-friendly
Precise control of EC and PH values
Easy operation,powerful functions and high intelligent
Easily deployable to both existing and new irrigation systems
 |
 |
 |
 |
 |
 |
 |
7. Fertilizer Blending Method: Automatic adjustment according to the set values of EC and pH. The channel ratio is adjustable, and different fertilizer suction ratios can be set for each channel.
8. Fertilizer Mixing Method: Barrel-type fertilizer blending, equipped with a cascaded sprinkler tray for uniform and rapid fertilizer mixing.
9. EC & pH Sensors: The EC sensor is imported from Germany, adopting high-precision inductive non-contact measurement to avoid electrode corrosion deviation and the influence of attached contaminants, featuring calibration-free and maintenance-free operation. The pH electrode is imported from JUMO, designed with isolated power supply for high data stability (measurement accuracy: ±0.02pH) and longer service life. Dual EC and pH detection points are configured.
Fertilizer Blending Accuracy: EC ±0.03 ms/cm, Stabilization Time: 30s under standard working conditions.
Product Parameters:
Model: XLH-YL2/Models Available
Voltage: 380V/Customized
Power: 2.2KW + 4KW
Liquid flow detection: EC sensor, PH sensor
Number of channels: Five channels
Fertilizer intake rate: 15m³/h (variable frequency constant pressure)
Valve control quantity: 16 (expandable)
Touch screen: 10 inches
Control method: Machine / Mobile APP
|
|
|
Product Advantage:
Water saving 60%
Fertilizer saving 50%
Increase yield 30%
Labor-saving and eco-friendly
Precise control of EC and PH values
Easy operation,powerful functions and high intelligent
Easily deployable to both existing and new irrigation systems
|
|
|
|
|
|
|
